Group 27 Lite Can - .Standard - 620 ID with .610 Mount - Price is for one Can
Group 27 Lite Can - .Standard - 620 ID with .610 Mount - Price is for one Can
/ 2

Group 27 Lite Can - .Standard - 620 ID with .610 Mount - Price is for one Can

DMW Product
$49.99

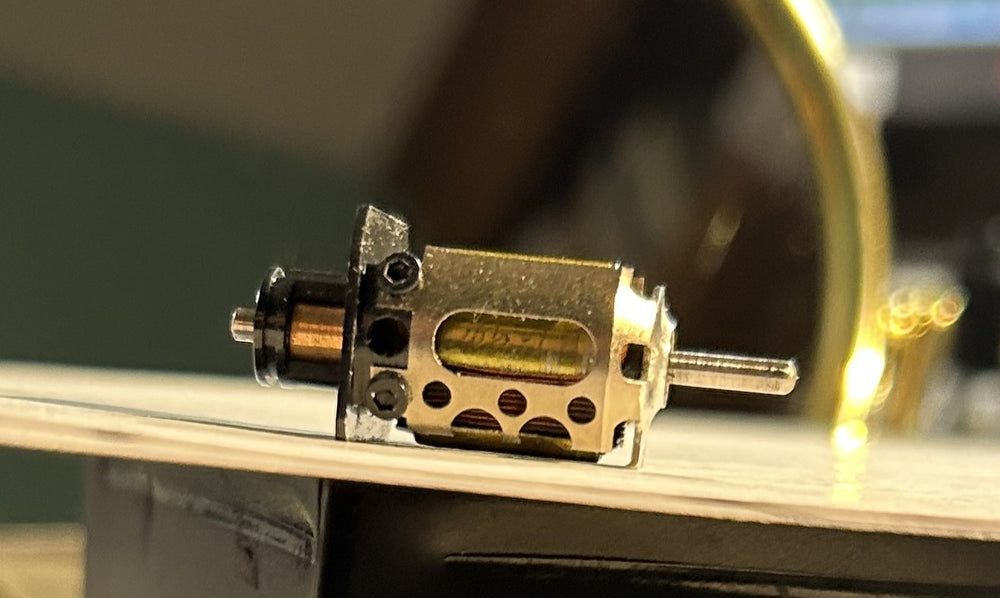

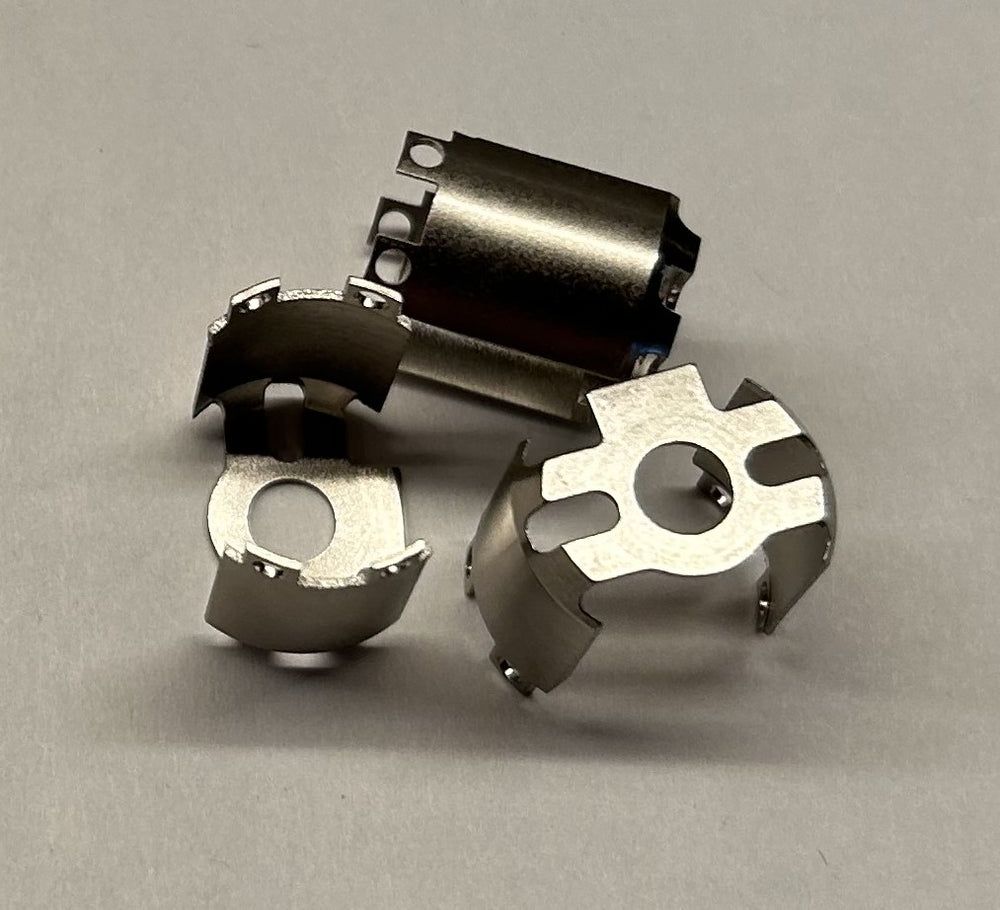

This is the third generation of our 27 lite, CNC machined Can. In our effort for continuous improvement, several changes have been incorporated. The internal length has been extended so that the standard arm length will fit more comfortably. The inside diameter machined to mount the magnets has been reduced to .620 as well as the corresponding outside diameter to maintain the wall thickness. New radial magnets are also available to match the reduced I.D. (DMW0105) Maybe most importantly, the tab on the bearing end has been extended to .250" from the bearing centerline. New end bells have been produced with three different variations with no hardware holes, zero timing hardware holes and 4 degree hardware holes. All have matching bottom flanges with .250" from bearing centerline. The result is the arm centerline sits parallel with the deck and provides clearance for a up to a .500" diameter stack.
